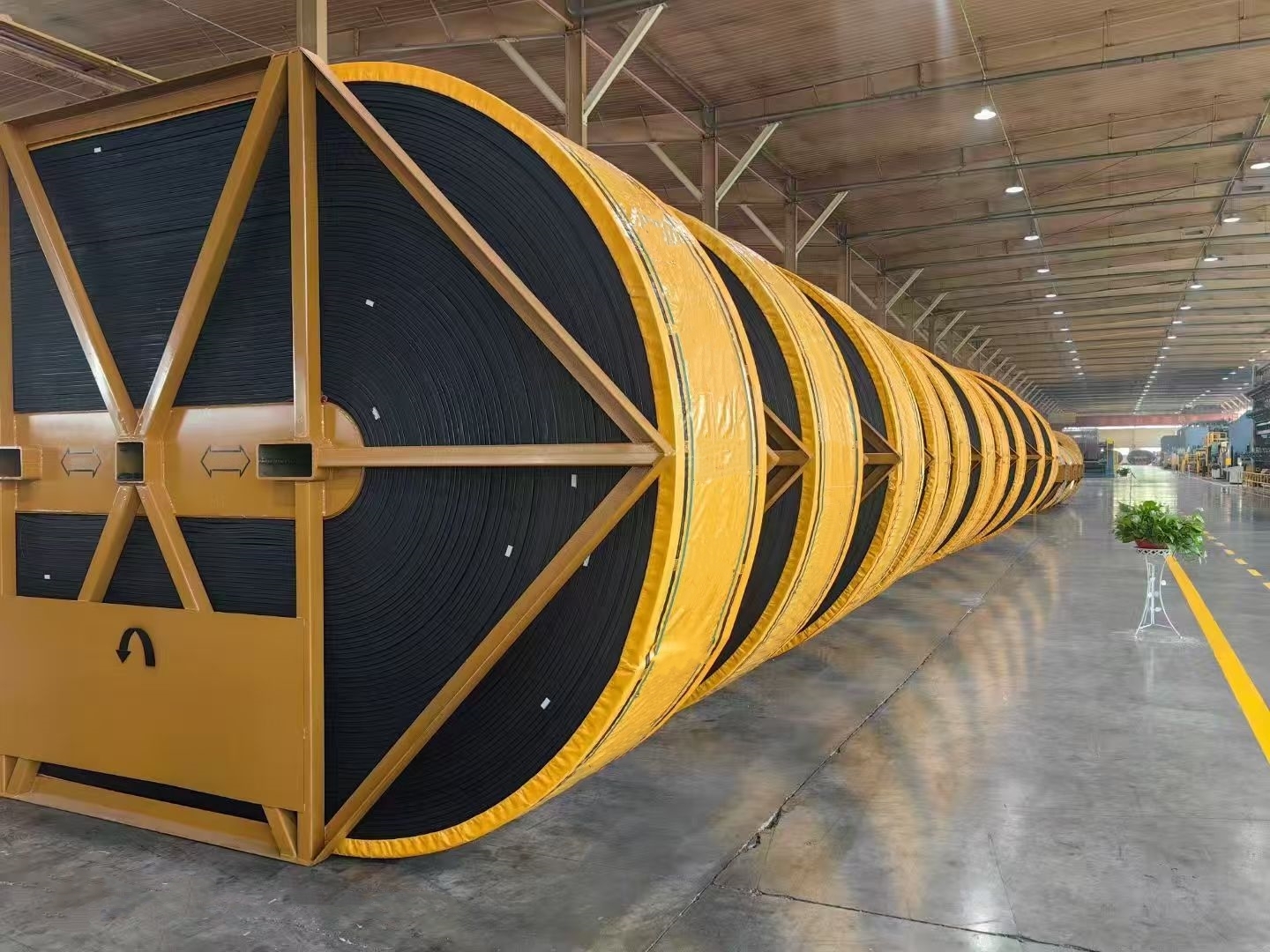

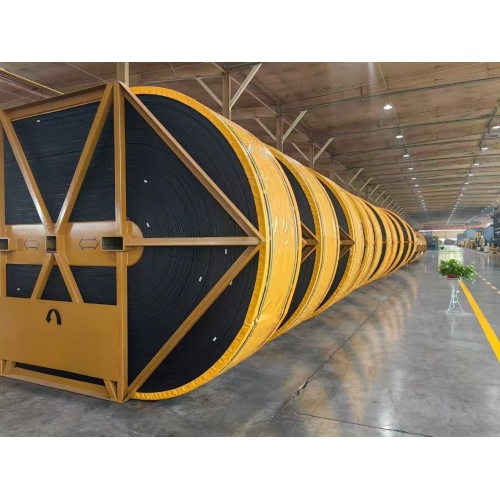

Kömür Taşıma Kauçuk Konveyör Bantları

Min. sipariş:1

Ürün Açıklaması

Kumaş takviyeli konveyör bantları , takviye malzemesinin türüne göre pamuklu kumaş (CC) konveyör bantları, naylon (NN) konveyör bantları ve polyester (EP) konveyör bantları olarak sınıflandırılır . Katmanlı kumaş takviyeli konveyör bantları kauçuk özelliklerine göre standart, ısıya dayanıklı, yüksek sıcaklığa dayanıklı, aleve dayanıklı, aşınmaya dayanıklı, genel yangına dayanıklı, iletken, asit/alkali dirençli, yağa dayanıklı, gıda sınıfı ve soğuğa dayanıklı çeşitler dahil olmak üzere çeşitli tiplerde gelir. Bu ürünler madencilik, liman, kömür, metalurji, inşaat, kimya ve tahıl işleme gibi endüstrilerde yaygın olarak kullanılmaktadır.

Belt Types	Features	Applications
General Purpose	Suitable for conveying powdery, granular, and lump materials.	For general material handling applications.
Oil-Resistant	Oil-resistant properties.	For conveying materials containing oil.
Acid & Alkali Resistant	Can convey materials with a pH value of 4–10; resistant to certain concentrations of acidic materials, etc.	For handling acidic or alkaline materials.
Heat-Resistant	Divided into types: T1 for material temperatures up to 100°C; T2 up to 125°C; T3 up to 150°C; T4 up to 175°C.	For conveying materials at specified elevated temperatures.
High-Temperature Resistant (Red-Hot / Abrasion Resistant)	Can convey lump materials at 300°C–500°C and powdery materials up to 300°C. Suitable for metallurgy, coking, building materials, and foundry industries for materials such as sintered products, cement clinker, and various high-temperature materials.	For conveying high-temperature materials.
General Flame-Retardant	The belt surface has flame-retardant and anti-static properties.	For conveying environments requiring flame resistance.
Cold-Resistant	The belt surface has cold-resistant properties and can be used under severely cold conditions, suitable for open-air material handling in frigid regions. Divided into two grades: C1 for operating environment temperatures from -45°C to +50°C; C2 for -60°C to +50°C.	For conveying materials in extremely cold environments.
Abrasion-Resistant	The belt surface has impact resistance and resistance to edge wear from materials.	Suitable for conveying hard, sharp-edged, or highly abrasive materials.

Parametre

Item	Between Fabric Layers	Between Cover Layer And Carcass
		Cover Thickness 0.8–1.5 mm	Cover Thickness >1.5 mm
Average Value, N/mm, ≥	4.5	3.2	3.5
Minimum Peak Value, N/mm, ≥	3.9	2.4	2.9
Note: The Max peak value of the specimen shall not exceed 20 N/mm.

Plies → Fabric Types ↓	2	3	4	5	6
Cotton Fabric	—	400	500	600	800
NN or EP-100	200	250	350	400	500
NN or EP-150	250	400	500	630	800
NN or EP-200	400	500	630	800	1000
NN or EP-300	500	630	800	1000	1250
NN or EP-400	630	800	1000	1250	1400
